Fibrillated Twisted or Non twist Standard/Commen/FR polypropylene fillers for cable and wire
In the process of producing cable and optical cable, in order to round the core of the cable, improve the mechanical buffering effect and appearance quality of the cable, and enhance the anti-punching performance of the cable, it is necessary to fill the core gap when forming the cable, and the filling material can use paper rope. , Cotton yarn, rubber strips and polypropylene materials.
Polypropylene fillers can be processed into flat filaments and fibers for filling, and can also be made into cable filling ropes. Polypropylene (PP) filling rope material replaces other cable filling ropes, has good electrical insulation and flexibility, and will not rot when filled in the cable for a long time.
The linear low-density polyethylene resin is modified to polypropylene, and then additives are added to be processed into a filling rope, which can be used as an optical cable filling.
Longtai polypropylene filled rope can be added with flame-retardant fillers to improve flame-retardant performance and reduce costs.
Specification Data Sheet for reference
| Linear Density | 12KD | 18KD | 30KD | 60KD | 90KD | 120KD | 195KD | 630KD | 880KD | 1130KD | 1630KD |
|
(weight) g/m(±10%) | 1.33 | 2 | 3.67 | 6.67 | 10 | 13.3 | 21.67 | 70 | 98 | 112 | 182 |
|
Diameter
(mm) | 1.5 | 2 | 3 | 4 | 5 | 6 | 8 | 12 | 14 | 16 | 20 |
Different Types Data Sheet
| Item | Unit | Commen Filler | Standard Filler | High Strength Filler/ LSZH FR Filler/ Submarine Filler |
| Breaking Strength | g/d | 0.2-0.6 | 0.6-1.4 | 1.4-3 |
| Breaking Elongation | % | ＜20 | ＜20 | ＜15 |
| Hot Shrinkage Rate | % | ≤6 | ≤4.5 | ≤3 |
| Weight per tube | KG | 6-40 | 2.5-40 | 2.5-40 |
| Oxygen Index | | | | FR ≥28% |
| Advantage | | Cheap price,suitable for large cable | Cheap price,suitable for large cable | Virgin PP material,best material property,suitable for optical cable,power able,submarine cable |
Package Tube sizes for choose or customzied
| Iner core(mm) | 28 | 38 | 38 | 54 | 76 | 76 | 90 |
| Core Length(mm) | 260 | 230 | 258 | 258 | 310 | 432 | 260 |

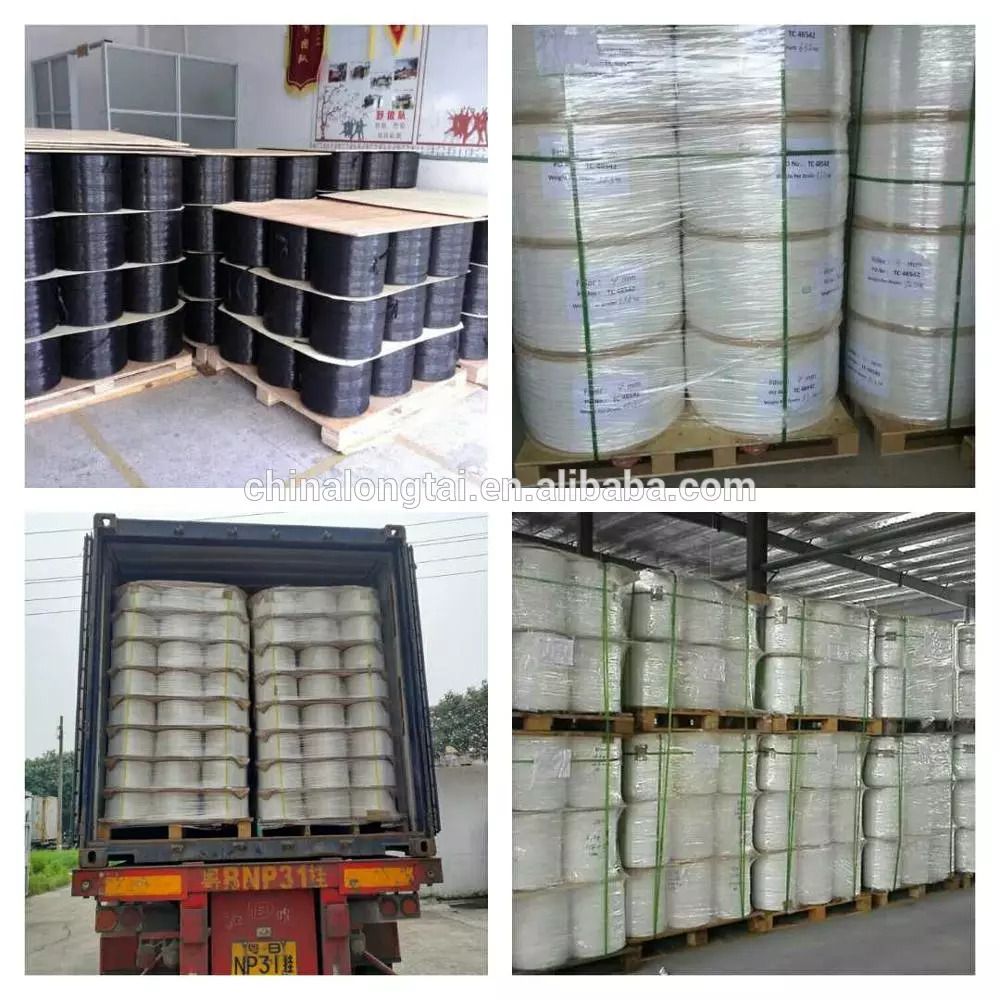

Package pictures for reference
Product Detailes
Certifications
What we cooperated
Remarks:
1> MOQ 1000KG
2> Loading Capacity with pallet shipment: Appox 8000KG/20GP
3> Payment term: T/T,30% in advance,70% before shipment
4> Production time: about 25 workdays after receive deposit
Product Tags:
|
|
Non Absorbent Fire Retardant Twisted PP Cable Filler Yarn In Paper Tube / Spool Images
|
